ADBLUE TANKS
BlauChem offers professional systems of recognised European producers for storing and distributing NOXY / AdBlue.
KINGSPAN is one of the leading producers, whose BlueMaster tanks are a great solution meeting the needs of vehicles with SCR system (find out more about www.noxy.eu)
When using BlueMaster products, you obtain a guarantee of the top quality of stored AdBlue and the accompanying chemical properties of the product.
- BlueMaster standard
- BlueMaster Pro
- BlueMaster Light
BlueMaster standard
BlueMaster Pro
BlueMaster Light

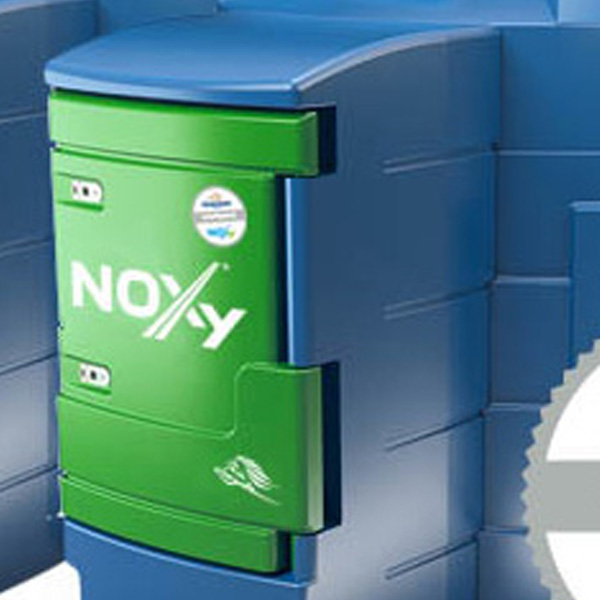

BlueMaster® Standard BlueMaster® Standard is a dual-surface tank for storing and distributing AdBlue® in the basic version:
- • automated filler,
- • digital flowmeter,
- • submersible pump,
- • clock measuring indicator,
- • leakage indicator,
- • overflow sensor*.
BlueMaster® Standard - Capacity and dimensions
|
Capacity |
Length |
Width |
Height |
|
2500 l |
2,46 m |
1,46 m |
1,86 m |
|
4000 l |
3,90 m |
1,15 m |
2,34 m |
|
5000 l |
2,85 m |
2,25 m |
2,35 m |
|
9000 l |
2,95 m |
2,45 m |
2,95 m |
Source: www.kingspan.com

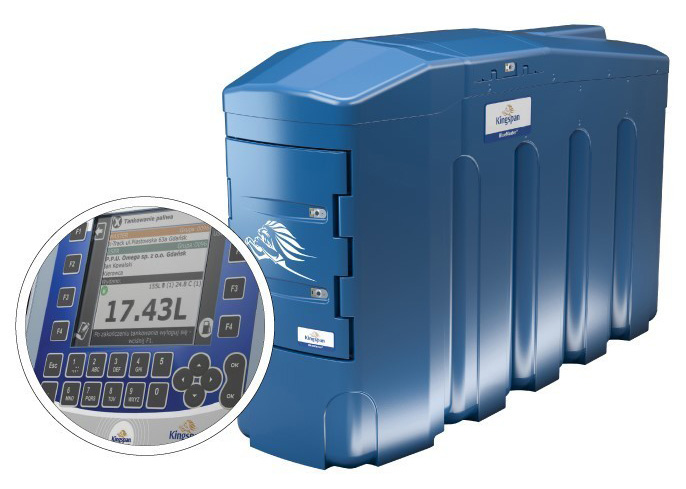

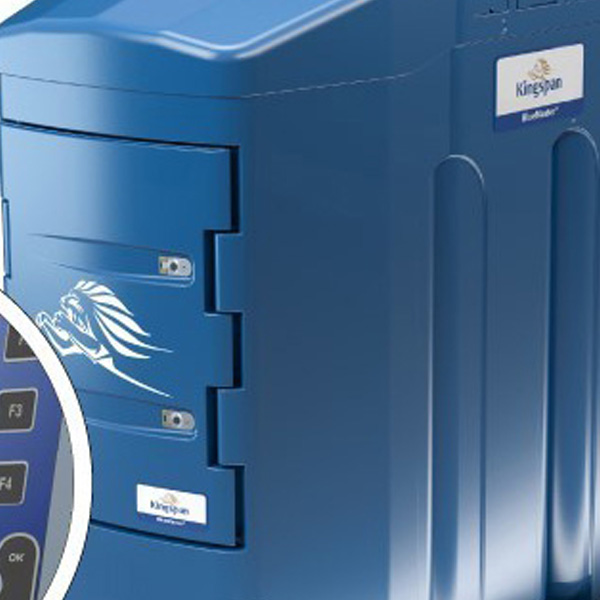

BlueMaster® PRO with Titan Access management system
Distribution system with Titan Access enables to take variety of actions in the scope of managing and controlling the stored AdBlue®. It has an option of multiple access and it is offered together with a tank monitoring system – Access TMS. This solution makes it possible to detect leaks, manage ventilation and heating of the tank, and if necessary, to protect liquids against high and low temperatures..
Key features of the system:
- • Managing user access: registration of the quantity of issued AdBlue®, for each user or vehicle.
- • Identification using RFID proximity cards with unique codes.
- • Controlling tank location thanks to built-in GPS module
- • Wireless data transfer to the server via a GSM or WIFI modem.
- • Database of up to 20,000 users.
- • Built-in alarms: overflow and leakage.
- • Tank monitoring system – Access TMS.
- • Immediate remote data transmission and 24/7 control.
- • Access to data from any place with access to the Internet via GSM/WiFi.
- • Reporting system with the possibility of exporting data to MS Office.
- • Measuring temperature of liquid in the tank.
Source: www.kingspan.com

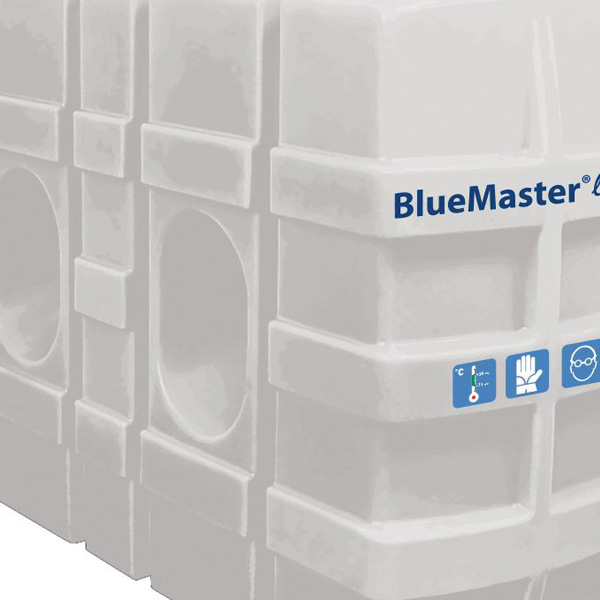

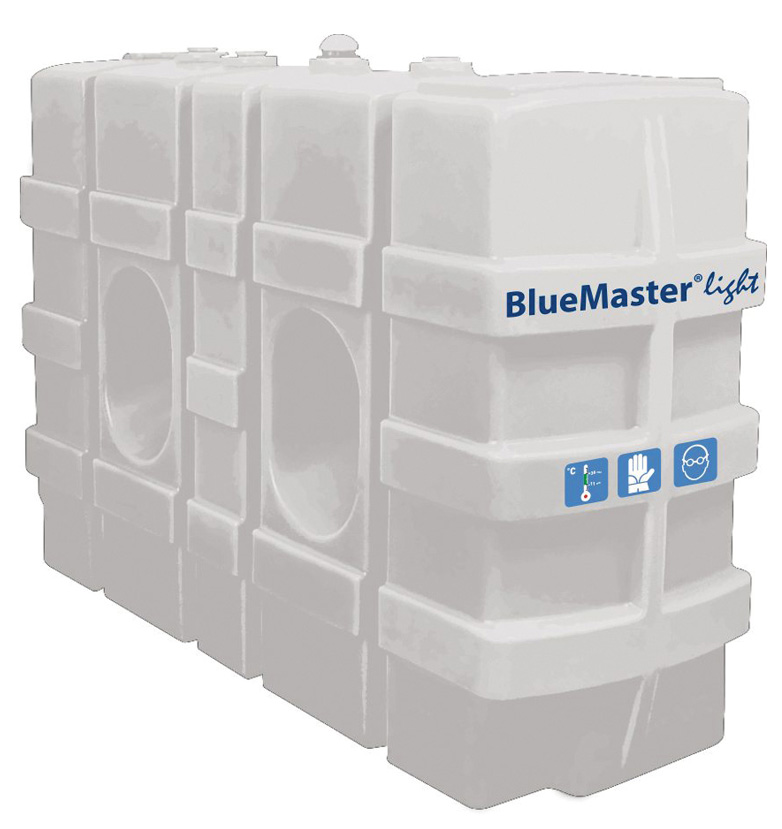

BlueMaster® light - SINGLE- AND DOUBLE- WALL TANKS FOR STORING AND DISTRIBUTION OF NOXY® / AdBlue®
BlueMaster® light tanks are an ideal solution for safe storage and distribution of AdBlue® for various business sectors, i.e. transport, industry or agriculture.
SINGLE-WALL TANK
STANDARD FITTING OF SINGLE-WALL TANK
- Single-wall tank, white, semi-transparent.
- 8” inspection manhole.
- 16” inspection manhole (from capacity of 3500 litres)
- Ventilation pipe
- 2” filler (at the top of tank).
- Simplified distribution system built of 230V submersible pump (ON/OFF switch), manual filler, 6m distribution duct.
BlueMaster® Light jednopłaszczowy - Capacity and dimensions
|
Capacity |
Length |
Diameter |
Width |
Height |
|
1000 l |
1,95 m |
- |
0,62 m |
1,23 m |
|
1300 l |
- |
1,20 m |
- |
1,40 m |
|
1500 l |
2,10 m |
- |
0,75 m |
1,40 m |
|
2500 l |
- |
1,65 m |
- |
1,50 m |
|
3500 l |
- |
1,90 m |
- |
1,80 m |
|
5000 l |
- |
2,01 m |
- |
2,30 m |
|
9000 l |
- |
2,30 m |
- |
2,85 m |
DOUBLE-WALL TANK
STANDARD FITTING OF DOUBLE-WALL TANK
- Double-wall tank (blue external tank)
- Locked pump enclosure.
- 8” or 16” inspection manhole (16” from capacity of 3500 litres)
- Ventilation pipe
- 2” filler (at the top of tank).
- Simplified distribution system built of 230V submersible pump (ON/OFF switch), manual filler, 6m distribution duct.
- Liquid level indicator. Floating for tanks with the capacity of 1300 and 2500 litres, pneumatic for the capacity of 3500 litres.
BlueMaster® Light dwupłaszczowy - Capacity and dimensions
|
Capacity |
Length |
Width |
Height |
|
1200 l |
1,90 m |
1,24 m |
1,79 m |
|
2500 l |
2,46 m |
1,46 m |
1,85 m |
|
3500 l |
2,85 m |
2,20 m |
1,96 m |
|
4000 l |
3,90 m |
1,15 m |
2,34 m |
|
5000 l |
2,85 m |
2,23 m |
2,34 m |
|
9000 l |
3,28 m |
2,48 m |
2,95 m |
Source: www.kingspan.com
